Implementing OIDC (with Okta)

Now that we have implemented email OTP authentication in the previous section, we can move on to implementing OpenID Connect (OIDC) authentication with Okta to allow OGP staff to authenticate using their Okta accounts.

note

Okta as the OIDC provider is not that commonly used in OGP applications as most of our products cater to external users instead of internal. It is used in this curriculum as the necessary OIDC credentials have been set up for learning purposes, and other providers has their own onboarding processes which is out of scope of this curriculum.

Other commonly used OIDC providers in OGP applications include:

Singpass
WOG Azure AD

tip

For this section, we highly recommend taking a look at https://www.oauth.com/ before proceeding if you do not know much about OAuth. This should give you a very grounded understanding of OAuth, and would be transferrable to other OAuth implementations (eg; Singpass, SGID, etc.)

Overview

OIDC (OpenID Connect) is an authentication layer built on top of OAuth 2.0. It enables applications to verify user identity and obtain basic profile information through a standardized flow. The implementation involves:

Authorization Request: Redirect user to identity provider (Okta)
User Authentication: User logs in at provider
Authorization Code: Provider redirects back with code
Token Exchange: Exchange code for access token and ID token
User Info Retrieval: Get user details from provider
Session Creation: Link provider account to local user and establish session

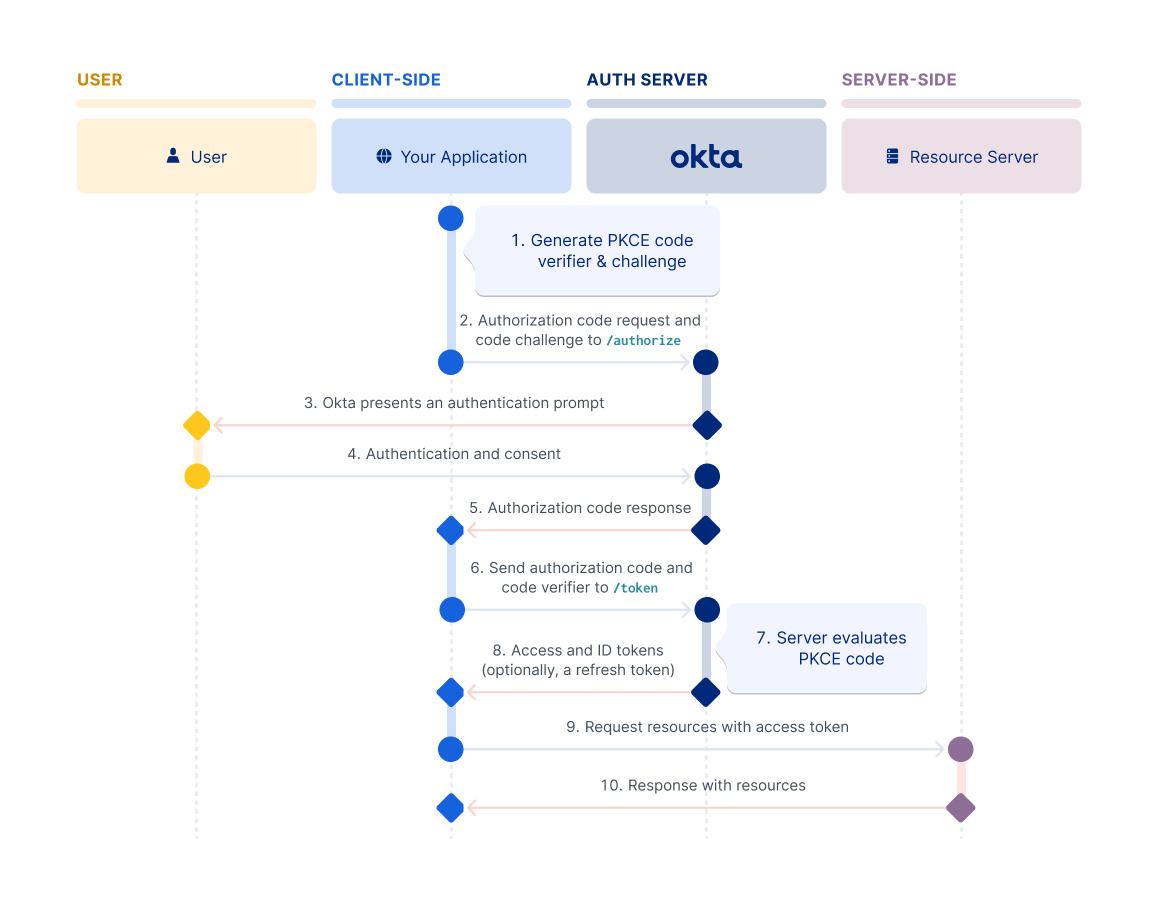

OAuth 2.0 Authorization Code Flow with PKCE

Prerequisites

Before starting, ensure you have:

Completed the email OTP implementation
Okta application credentials (TODO: provide for this curriculum)
Understanding of OAuth 2.0 authorization code flow
Database schema supporting multiple authentication providers per user

Product Requirements Document

1. Objective

Implement OpenID Connect (OIDC) authentication with Okta as an additional authentication method, enabling users to login using their Okta credentials while reusing the multi-provider account infrastructure built for email OTP.

2. User Stories

As a user, I want to:

Login using my Okta account without managing separate passwords
Have my Okta account automatically linked to my existing user account if I previously logged in via email
See a clear indication that I'm being redirected to Okta for authentication
Be redirected back to the application after successful authentication
Have the same authenticated experience regardless of which method I use to login

As a system administrator, I want to:

Support multiple authentication providers (email OTP and OIDC) for the same user
Securely store and validate OIDC state parameters to prevent CSRF attacks
Use industry-standard OAuth 2.0 / OIDC protocols for maintainability
Reuse existing user and account management infrastructure
Prevent replay attacks and session hijacking

3. Functional Requirements

3.1 Database Schema Considerations

Reusing Existing Models

The database schema from email OTP implementation already supports OIDC:

User Model: Shared across all authentication providers
Account Model: Stores provider-specific identifiers
- For email: provider = "email", providerAccountId = user@example.com
- For Okta: provider = "okta", providerAccountId = <okta_user_id>

State Parameter Storage

OIDC requires storing a state parameter to prevent CSRF attacks:

Option 1: Store in session cookie (recommended for stateless architecture)
Option 2: Store in VerificationToken model temporarily
Format: Cryptographically random string
Lifecycle: Created before redirect, validated on callback, deleted after use

3.2 OIDC Configuration

Environment Variables

Ensure application has the required environment variables for Okta integration, usually:

OKTA_CLIENT_ID=<your_client_id>
OKTA_CLIENT_SECRET=<your_client_secret>
OKTA_ISSUER=https://<your_domain>.okta.com/oauth2/default
OKTA_REDIRECT_URI=http://localhost:3000/api/auth/okta/callback

Scopes

info

You can refer to Okta's documentation for more details on what scopes are available: https://developer.okta.com/docs/api/oauth2/

Different OIDC providers may have different scopes and claims available, so always check the provider's documentation when implementing new ones.

Required scopes for Okta authentication (in our case):

openid: Required for OIDC
email: User's email address

3.3 Authorization Flow

info

The below flow assumes usage of the authorization code flow, which is the most secure for server-side applications. Other flows (implicit, hybrid) exist but are less secure and not recommended for this use case.

This flow also uses generic fetch calls for clarity. In practice, you may use libraries like openid-client to handle many of these steps.

Step 1: Initiate Authorization Request

tip

You may use a variety of libraries to help with building the authorization URL and handling redirects. A commonly used library in OGP is openid-client, though some teams may prefer specific libraries depending on the OIDC provider, such as @okta/okta-auth-js for Okta and @govtechsg/singpass-myinfo-oidc-helper for Singpass.

User clicks "Login with Okta" button:

Generate cryptographically random state parameter (CSRF protection)
Generate optional nonce parameter (ID token replay protection)
Store state (and optionally nonce) in session or database
Build authorization URL (either via a library or manually) with parameters:
- client_id: Your Okta application client ID
- redirect_uri: Callback URL in your application
- response_type: code (authorization code flow)
- scope: openid profile email
- state: Generated state parameter
- nonce: Generated nonce parameter (optional but recommended)
Redirect user to authorization URL

Step 2: User Authentication at Okta

User is redirected to Okta login page
User enters Okta credentials
Okta validates credentials
User consents to share any other scope information (if any, first time only)

Step 3: Authorization Callback

Okta redirects back to your callback endpoint with:

code: Authorization code (single-use, short-lived)
state: The same state parameter you sent

Validation required:

Verify state matches what was stored
Verify code is present
Delete stored state after validation

Step 4: Token Exchange

Exchange authorization code for tokens:

Make POST request to token endpoint:
- URL: ${OKTA_ISSUER}/v1/token
- Method: POST
- Headers:
  - Content-Type: application/x-www-form-urlencoded
  - Authorization: Basic <base64(client_id:client_secret)>
- Body:
  - grant_type=authorization_code
  - code=<authorization_code>
  - redirect_uri=<redirect_uri>
Response contains:
- access_token: Used to access protected resources
- id_token: JWT containing user identity claims
- token_type: Usually "Bearer"
- expires_in: Token validity duration
- refresh_token: (optional) For obtaining new access tokens

Step 5: Validate ID Token

The ID token is a JWT that must be validated:

Verify signature using Okta's public keys (from JWKS endpoint)
Verify claims:
- iss (issuer): Must match OKTA_ISSUER
- aud (audience): Must match OKTA_CLIENT_ID
- exp (expiration): Token not expired
- iat (issued at): Token not issued in the future
- nonce: Must match the nonce sent in authorization request (if used)

Step 6: Get User Information

Option A: Extract from ID token (faster):

ID token contains: sub (user ID), email, name, etc.

Option B: Call userinfo endpoint (more comprehensive):

URL: ${OKTA_ISSUER}/v1/userinfo
Method: GET
Headers: Authorization: Bearer <access_token>
Response: User profile information

Step 7: Upsert User and Account

Reuse the user/account management logic from email OTP.

Step 8: Create Session

Should be identical to email OTP session creation.

3.4 API Endpoints

GET /api/auth/okta/login

Purpose: Initiate OIDC authorization flow
Process:
1. Generate state parameter
2. Generate nonce parameter (optional)
3. Store state and nonce in session
4. Save session
5. Build authorization URL
6. Redirect to Okta authorization endpoint
Session State After: { state: string, nonce?: string }

GET /api/auth/okta/callback

Purpose: Handle authorization callback from Okta
Query Parameters:
- code: Authorization code
- state: State parameter for CSRF protection
Process:
1. Retrieve state and nonce from session
2. Validate state matches query parameter
3. Exchange code for tokens (POST to token endpoint)
4. Validate ID token (signature, issuer, audience, expiration, nonce)
5. Extract user info from ID token or call userinfo endpoint
6. Upsert user and account (in transaction)
7. Clear state and nonce from session
8. Store user ID in session
9. Save session
10. Redirect to authenticated area (e.g., /admin)
Session State After: { userId: string }
Error Handling:
- Missing/invalid state: "Invalid authentication request"
- Missing code: "Authorization failed"
- Token exchange failure: "Failed to authenticate with provider"
- ID token validation failure: "Invalid authentication response"

3.5 Security Requirements

State Parameter

Purpose: CSRF protection
Generation: Cryptographically random (e.g., crypto.randomUUID())
Storage: Session cookie (stateless) or database (stateful)
Validation: Must match exactly
Lifecycle: Single-use (deleted after validation)

Nonce Parameter

Purpose: ID token replay attack prevention
Generation: Cryptographically random
Storage: Session cookie or database
Validation: ID token's nonce claim must match
Lifecycle: Single-use (deleted after validation)

ID Token Validation

Must validate all security-critical claims:

Signature: Verify using Okta's public keys (JWKS)
Issuer (iss): Must match configured issuer
Audience (aud): Must match client ID
Expiration (exp): Token not expired
Issued At (iat): Not in the future
Nonce: Matches stored nonce (if used)

Client Secret Protection

Never expose in client-side code
Use environment variables
Include in Authorization header (not request body) when possible
Use Basic Auth format: Basic <base64(client_id:client_secret)>

4. Non-Functional Requirements

4.1 Security

Must Have

CSRF protection via state parameter
ID token replay protection via nonce parameter
ID token signature verification
All OIDC claims validation
HTTPS in production (OAuth redirect URIs must be HTTPS)
Secure session cookies (httpOnly, secure, sameSite)

Should Have

Token caching to reduce provider API calls
JWKS key caching with TTL
Rate limiting on callback endpoint
Audit logging of authentication attempts

Nice to Have

Support for token refresh flows
Automatic token renewal before expiration
Provider-specific error handling

4.2 Performance

OIDC discovery caching (fetch once on startup)
JWKS key caching (reduce calls to Okta)
Token exchange: < 500ms (depends on provider)
ID token validation: < 100ms (local operation)

4.3 Usability

Clear "Login with Okta" button on sign-in page
Loading state during OAuth redirect flow
User-friendly error messages (without leaking security details)
Automatic redirect to originally requested page after authentication

4.4 Maintainability

Use established OIDC libraries (e.g., openid-client, jose)
Avoid custom crypto implementations
Configuration via environment variables
Provider-agnostic code structure (easy to add Singpass, Azure AD, etc.)

5. Technical Constraints

Required Technologies

info

The following libraries are recommended but not pre-installed. You may need to add them:

openid-client: OIDC client library for token exchange and validation
jose: JWT/JWS/JWE implementation for ID token validation
Existing stack: Prisma, iron-session, Node.js crypto module

Configuration Variables

Add to .env:

OKTA_CLIENT_ID=<provided_by_instructor>
OKTA_CLIENT_SECRET=<provided_by_instructor>
OKTA_ISSUER=<provided_by_instructor>
OKTA_REDIRECT_URI=http://localhost:3000/api/auth/okta/callback

Okta Application Setup

Your Okta application must be configured with:

Application type: Web application
Grant types: Authorization code
Redirect URIs: Must include your callback URL
Scopes: openid, profile, email

6. Architecture Patterns

Reusing Email OTP Infrastructure

The OIDC implementation should reuse:

User Model: Same user entity across providers
Account Model: provider = "okta", providerAccountId = sub
Session Management: Same iron-session setup
User/Account Upsert: Same transaction-wrapped logic

Provider Abstraction

Structure code to support multiple OIDC providers:

// Example structure
interface OIDCProvider {
  name: string;
  issuer: string;
  clientId: string;
  clientSecret: string;
  redirectUri: string;
  scopes: string[];
}

const oktaProvider: OIDCProvider = {
  name: "okta",
  issuer: env.OKTA_ISSUER,
  clientId: env.OKTA_CLIENT_ID,
  clientSecret: env.OKTA_CLIENT_SECRET,
  redirectUri: env.OKTA_REDIRECT_URI,
  scopes: ["openid", "profile", "email"],
};

This makes it easier to add Singpass, Azure AD, etc. later.

7. Security Architecture

Attack Vector Coverage

Attack Type	Mitigation Strategy
CSRF	State parameter validation
Replay Attack	Nonce parameter in ID token
Token Tampering	ID token signature verification
Token Theft	Short-lived tokens + secure session cookies
Phishing	Rely on Okta's authentication security
Account Takeover	Email verification at Okta prevents unauthorized access
Session Hijacking	Encrypted session cookies + HTTPS
Authorization Code Interception	PKCE (optional, for public clients) + HTTPS

OAuth 2.0 Security Best Practices

From RFC 6749:

Always validate state parameter
Use short-lived authorization codes (Okta enforces this)
Exchange code on server-side (never expose client secret to client)
Validate all ID token claims
Use HTTPS for all OAuth endpoints
Store tokens securely (never in localStorage or accessible cookies)

8. Acceptance Criteria

User Flow

✅ User can click "Login with Okta" button
✅ User is redirected to Okta login page
✅ After successful Okta login, user is redirected back to application
✅ Session is established with user information
✅ User can access authenticated areas
✅ If user previously logged in via email, Okta account is linked to existing user

Security Validation

✅ State parameter prevents CSRF attacks
✅ Nonce parameter prevents ID token replay
✅ ID token signature is validated
✅ All ID token claims are validated
✅ Authorization code is single-use
✅ Tokens are never exposed to client-side code

Edge Cases

✅ User cancels Okta login: Returns to sign-in page with error message
✅ Invalid state parameter: Authentication fails with security error
✅ Expired authorization code: Token exchange fails gracefully
✅ Invalid ID token: Validation fails gracefully
✅ Network error during token exchange: User sees friendly error message
✅ Email from Okta doesn't exist in User table: New user created
✅ Email from Okta exists in User table: Account linked to existing user

Multi-Provider Support

✅ User with email OTP account can add Okta login
✅ User with Okta account can add email OTP login
✅ Same user entity regardless of login method
✅ Multiple accounts (email + okta) linked to one user

9. Out of Scope

The following are explicitly NOT included in this PRD:

Automatic token refresh flows
Support for multiple Okta organizations
SAML authentication (separate protocol)
Custom OIDC claim mapping
Role-based access control (RBAC) from Okta groups
Account unlinking functionality
Admin UI for viewing linked accounts
Singpass or Azure AD integration (similar patterns, different providers)

Success State: After implementation, you should be able to login using Okta credentials. The application should create or link accounts appropriately, and the authenticated session should work identically to email OTP authentication.

Common Pitfalls

1. Not Validating State Parameter

❌ Wrong:

// Accept callback without state validation
const { code } = query;
// Vulnerable to CSRF attacks

✅ Correct:

const { code, state } = query;
const storedState = session.oauthState;

if (!state || !storedState || state !== storedState) {
  throw new Error("Invalid state parameter");
}

2. Exposing Client Secret in Frontend

❌ Wrong:

// In client-side code
const tokenResponse = await fetch(tokenEndpoint, {
  body: JSON.stringify({
    client_secret: process.env.OKTA_CLIENT_SECRET, // DON'T DO THIS
  }),
});

✅ Correct:

// In server-side code only
const tokenResponse = await fetch(tokenEndpoint, {
  headers: {
    Authorization: `Basic ${Buffer.from(`${clientId}:${clientSecret}`).toString(
      "base64"
    )}`,
  },
});

3. Not Validating ID Token Claims

❌ Wrong:

// Decode JWT without validation
const claims = JSON.parse(atob(idToken.split(".")[1]));
// Vulnerable to token tampering

✅ Correct:

// Use library to validate signature and claims
import { jwtVerify } from "jose";

const { payload } = await jwtVerify(idToken, jwks, {
  issuer: OKTA_ISSUER,
  audience: OKTA_CLIENT_ID,
});

4. Hardcoding OIDC Endpoints

❌ Wrong:

const authUrl = "https://my-okta-domain.okta.com/oauth2/default/v1/authorize";
// Breaks if Okta changes URLs

✅ Correct:

// Fetch from discovery endpoint
const discovery = await fetch(`${issuer}/.well-known/openid-configuration`);
const { authorization_endpoint } = await discovery.json();

5. Not Using Transactions for User/Account Creation

❌ Wrong:

const user = await db.user.upsert({ ... });
const account = await db.account.create({ userId: user.id, ... });
// If account creation fails, orphaned user remains

✅ Correct:

await db.$transaction(async (tx) => {
  const user = await tx.user.upsert({ ... });
  const account = await tx.account.upsert({ userId: user.id, ... });
});

Extension Exercises

Want to practice more? Try implementing:

Token Refresh Flow:
- Store refresh tokens securely
- Refresh access tokens before expiration
- Handle refresh token expiration
PKCE (Proof Key for Code Exchange):
- Generate code verifier and challenge
- More secure for public clients
- Recommended for all OAuth flows
Multiple OIDC Providers:
- Add Singpass or Azure AD
- Abstract common OIDC logic
- Provider selection UI
Account Management UI:
- View linked accounts
- Unlink accounts
- Set primary authentication method

Testing Your Implementation

Test the OIDC implementation thoroughly:

pnpm test

Manual Testing Checklist

Click "Login with Okta" redirects to Okta
Enter Okta credentials successfully logs in
User session is created correctly
Can access authenticated pages
Logout works correctly
Invalid state parameter is rejected
Network errors are handled gracefully
Existing email users can add Okta login
New Okta users create new accounts

Summary

You should have now implemented a production-ready OIDC authentication system with:

✅ Authorization code flow with Okta
✅ CSRF protection via state parameter
✅ Replay protection via nonce parameter
✅ ID token signature and claims validation
✅ Multi-provider account linking
✅ Secure token exchange on server-side
✅ Reuse of existing user/account infrastructure

This pattern is used across many OGP applications for integrating with Singpass, Azure AD, and other OIDC providers. The core flow remains the same; only the provider configuration changes.

Overview​

Prerequisites​

Product Requirements Document​

1. Objective​

2. User Stories​

3. Functional Requirements​

3.1 Database Schema Considerations​

3.2 OIDC Configuration​

3.3 Authorization Flow​

3.4 API Endpoints​

3.5 Security Requirements​

4. Non-Functional Requirements​

4.1 Security​

4.2 Performance​

4.3 Usability​

4.4 Maintainability​

5. Technical Constraints​

6. Architecture Patterns​

7. Security Architecture​

8. Acceptance Criteria​

9. Out of Scope​

Common Pitfalls​

1. Not Validating State Parameter​

2. Exposing Client Secret in Frontend​

3. Not Validating ID Token Claims​

4. Hardcoding OIDC Endpoints​

5. Not Using Transactions for User/Account Creation​

Extension Exercises​

Testing Your Implementation​

Manual Testing Checklist​

Summary​

Overview

Prerequisites

Product Requirements Document

1. Objective

2. User Stories

3. Functional Requirements

3.1 Database Schema Considerations

3.2 OIDC Configuration

3.3 Authorization Flow

3.4 API Endpoints

3.5 Security Requirements

4. Non-Functional Requirements

4.1 Security

4.2 Performance

4.3 Usability

4.4 Maintainability

5. Technical Constraints

6. Architecture Patterns

7. Security Architecture

8. Acceptance Criteria

9. Out of Scope

Common Pitfalls

1. Not Validating State Parameter

2. Exposing Client Secret in Frontend

3. Not Validating ID Token Claims

4. Hardcoding OIDC Endpoints

5. Not Using Transactions for User/Account Creation

Extension Exercises

Testing Your Implementation

Manual Testing Checklist

Summary
